Lifting Brackets, 28 mm

Designed for the safe and efficient handling of heavy components, our Lifting Brackets provide a reliable lifting solution for 28 mm tables and similar equipment. Two models are available to meet a range of lifting needs:

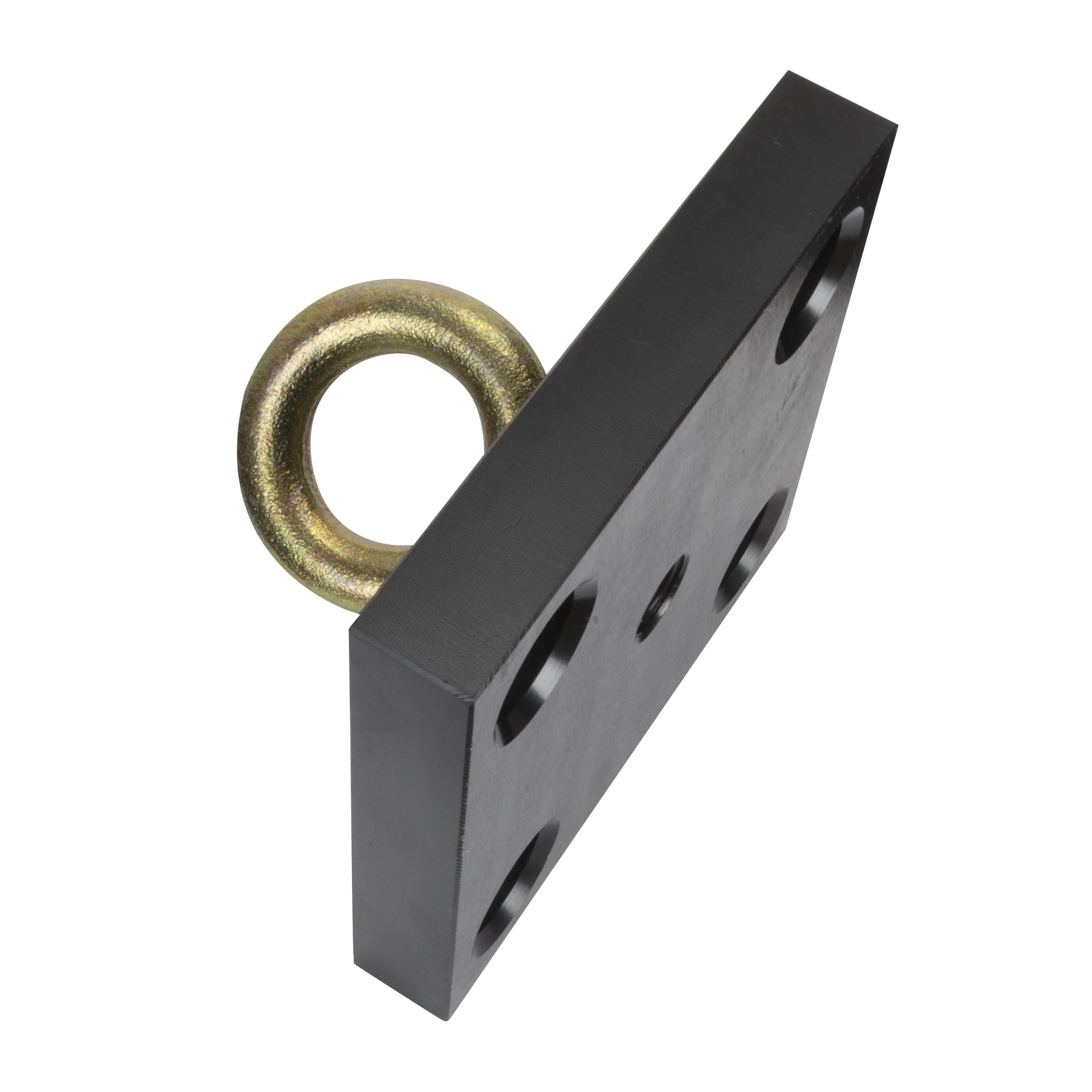

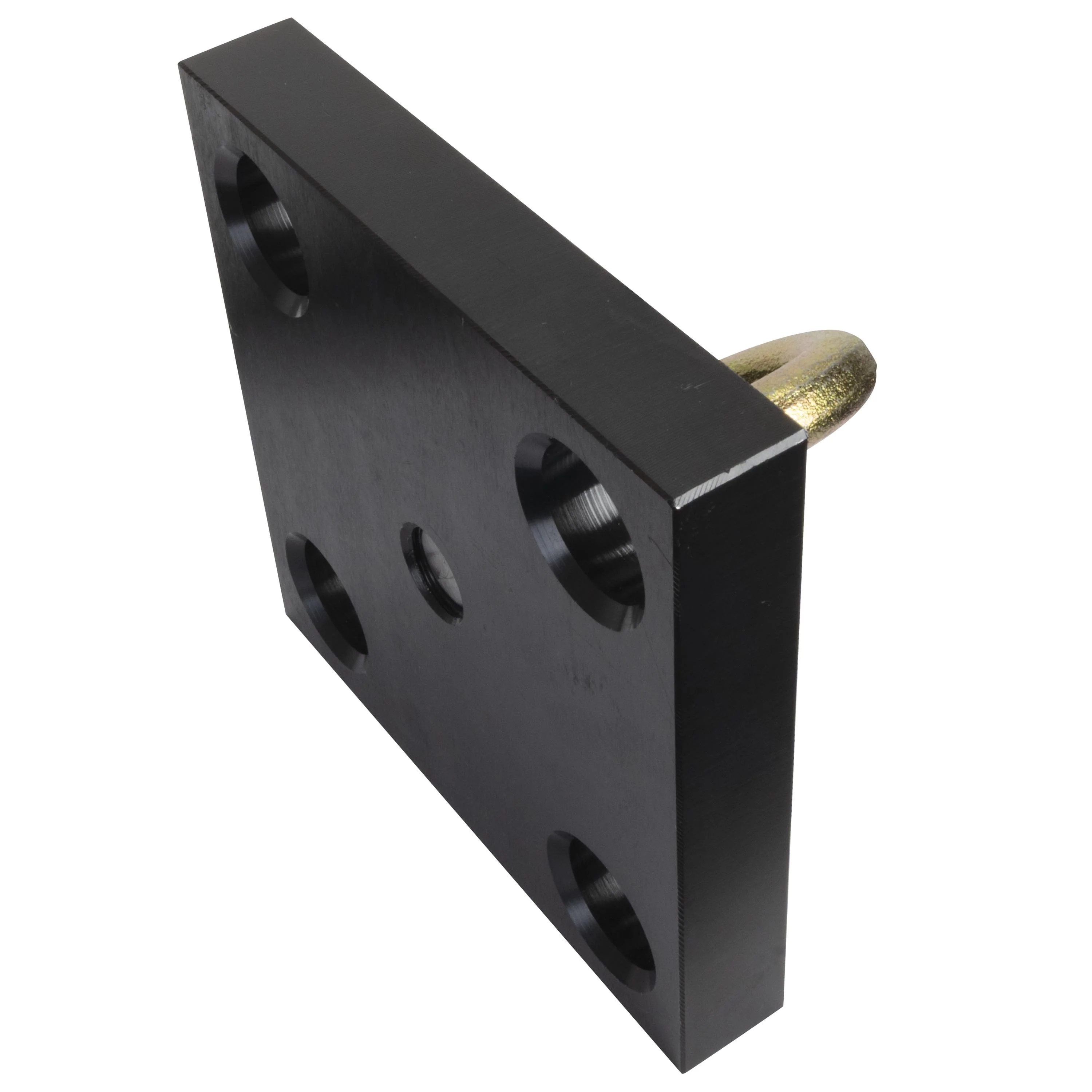

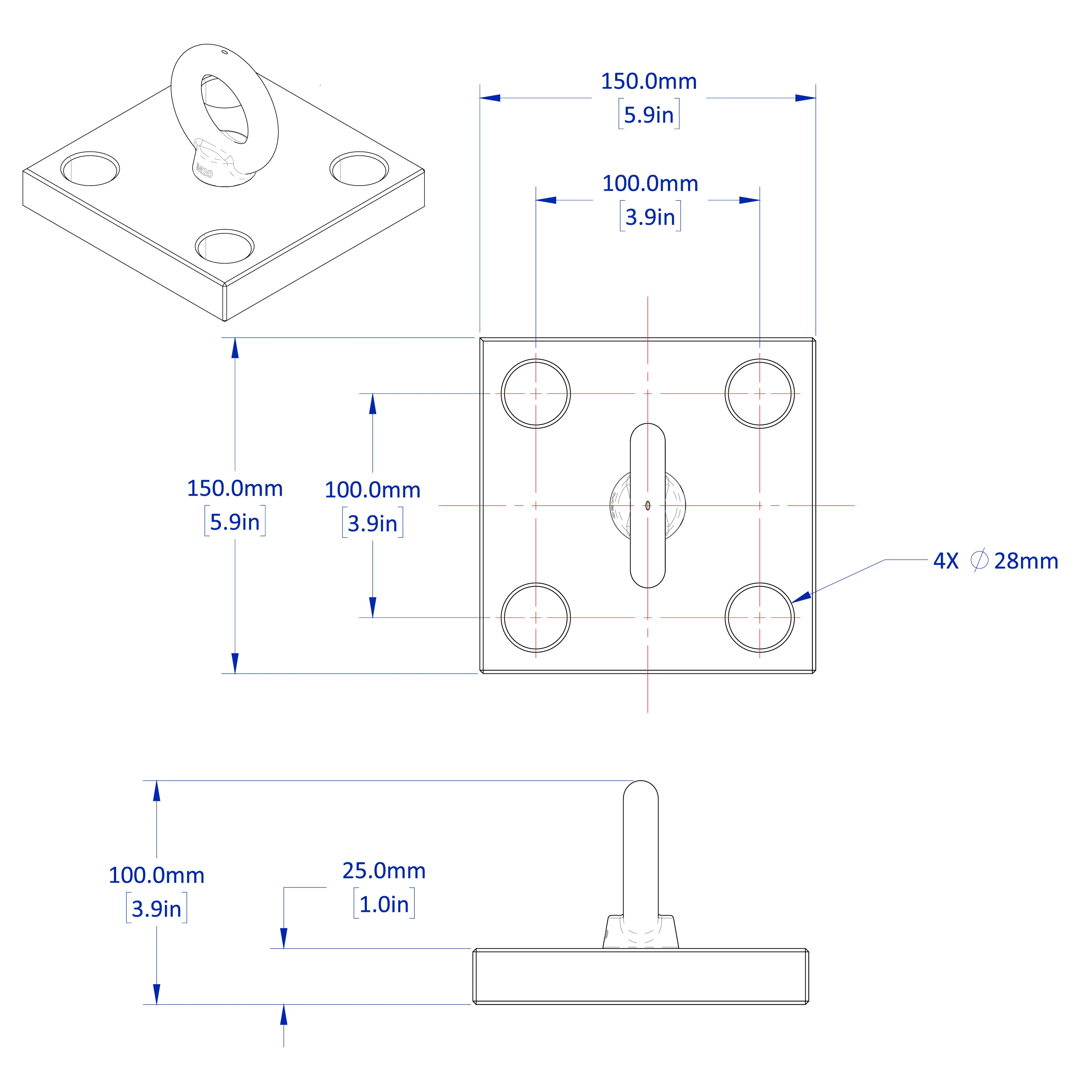

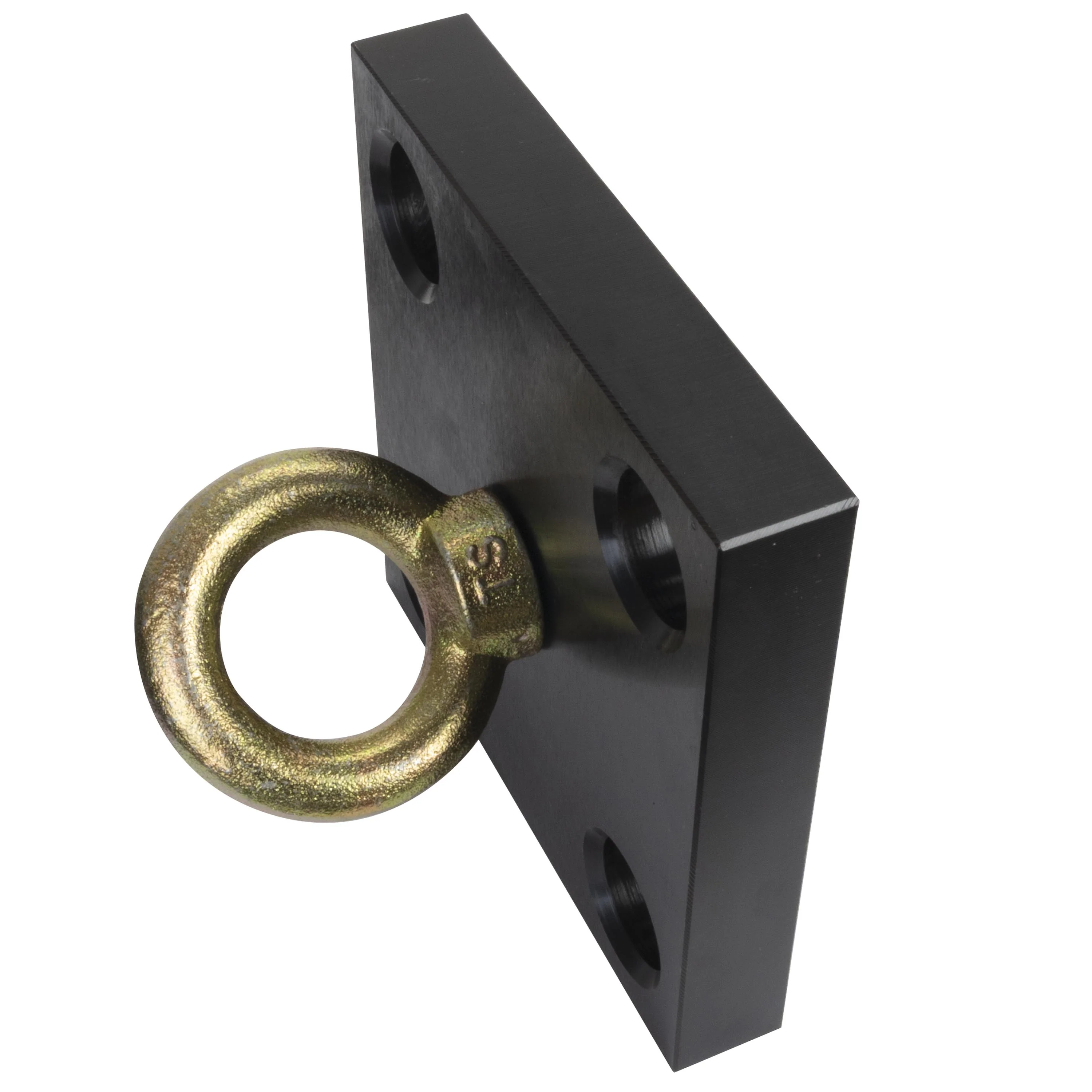

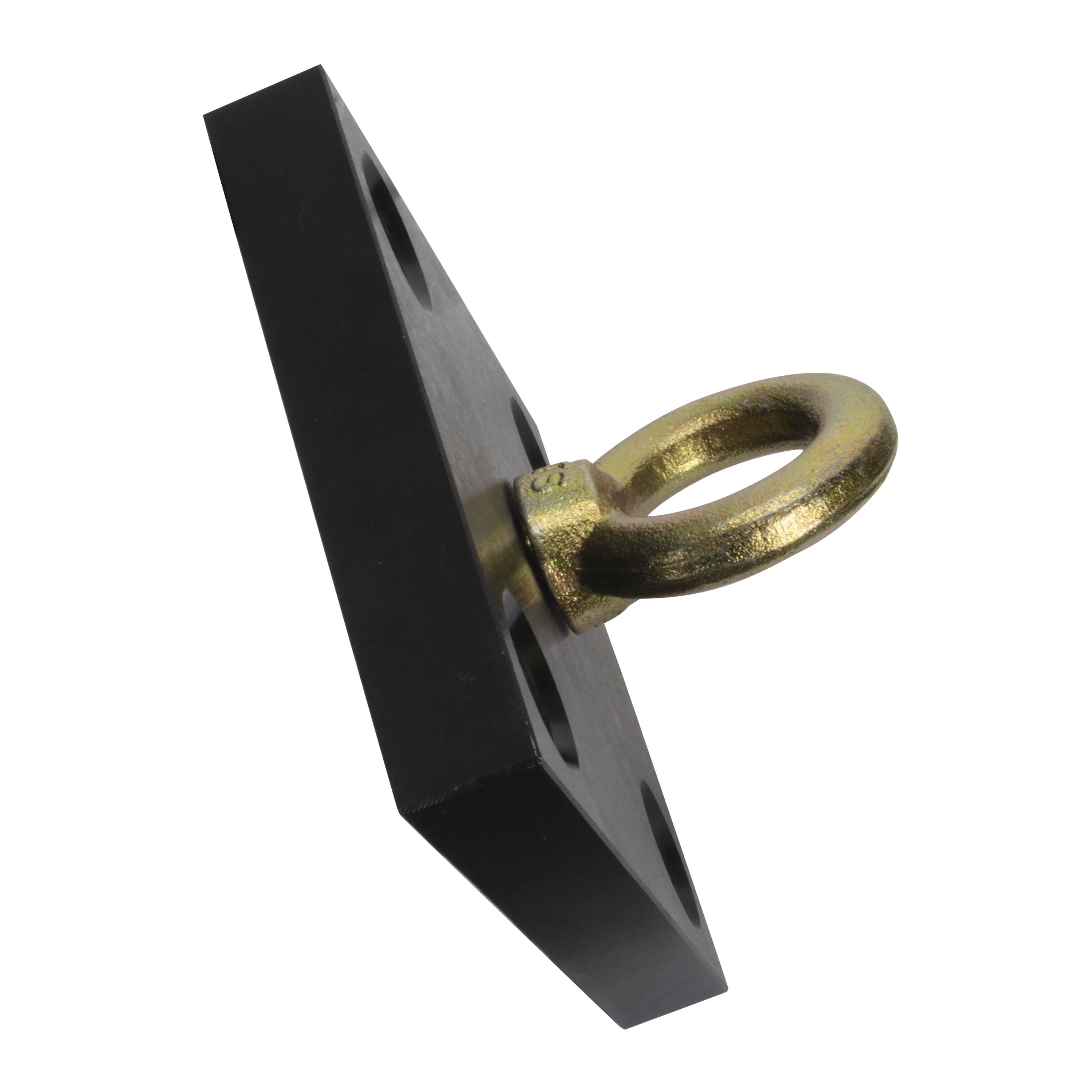

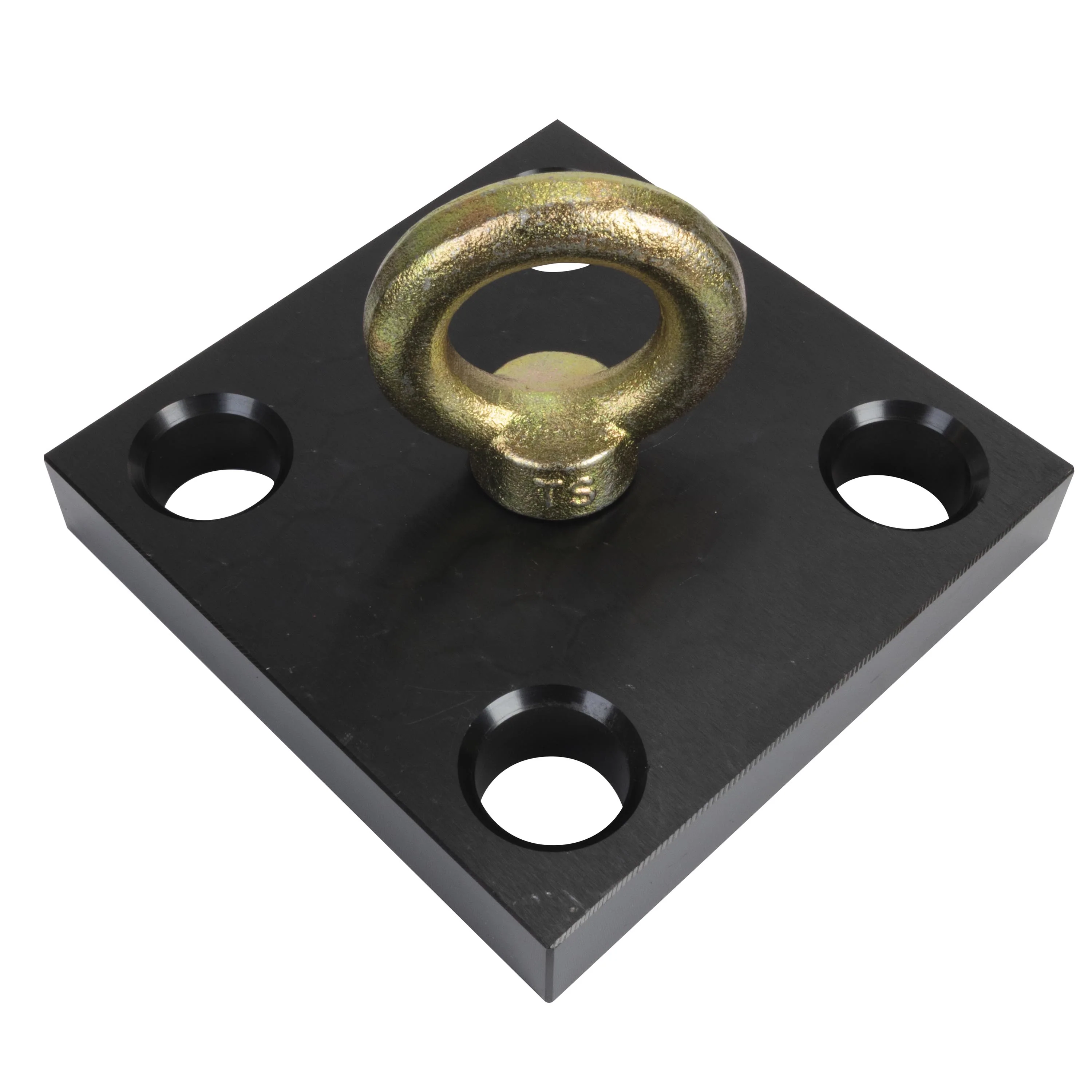

1. Lifting Bracket w/ Eye Nut (T28-97150)

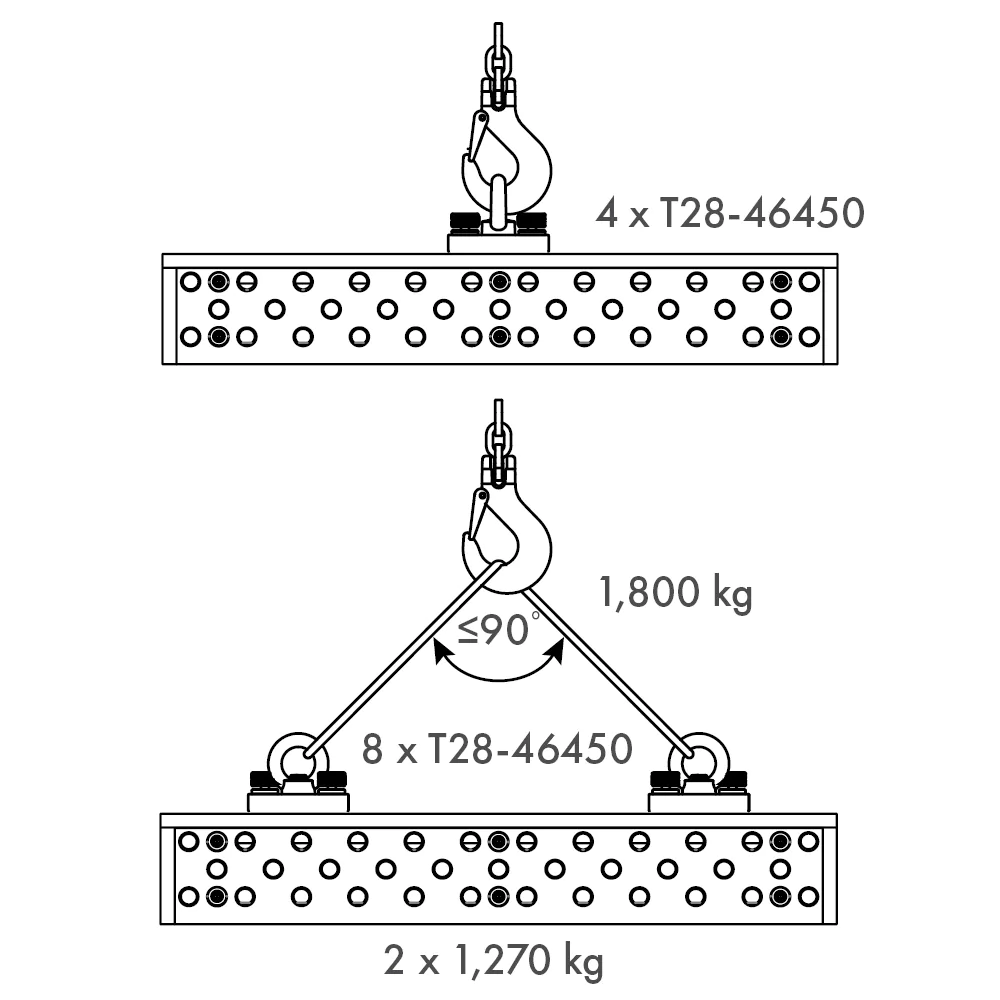

• Load Capacity: Rated up to 1,800 kg for secure lifting.
• Quick Installation: Fastens using four clamping bolts (T28-46450).
• Purpose: Ideal for stable vertical lifts; lateral forces must be avoided on the eye nut to maintain load capacity.
• Safety Note: Ensure eye nut is fully threaded and seated flat on the bracket. Clamping bolts must be fully seated to achieve proper clamping force.

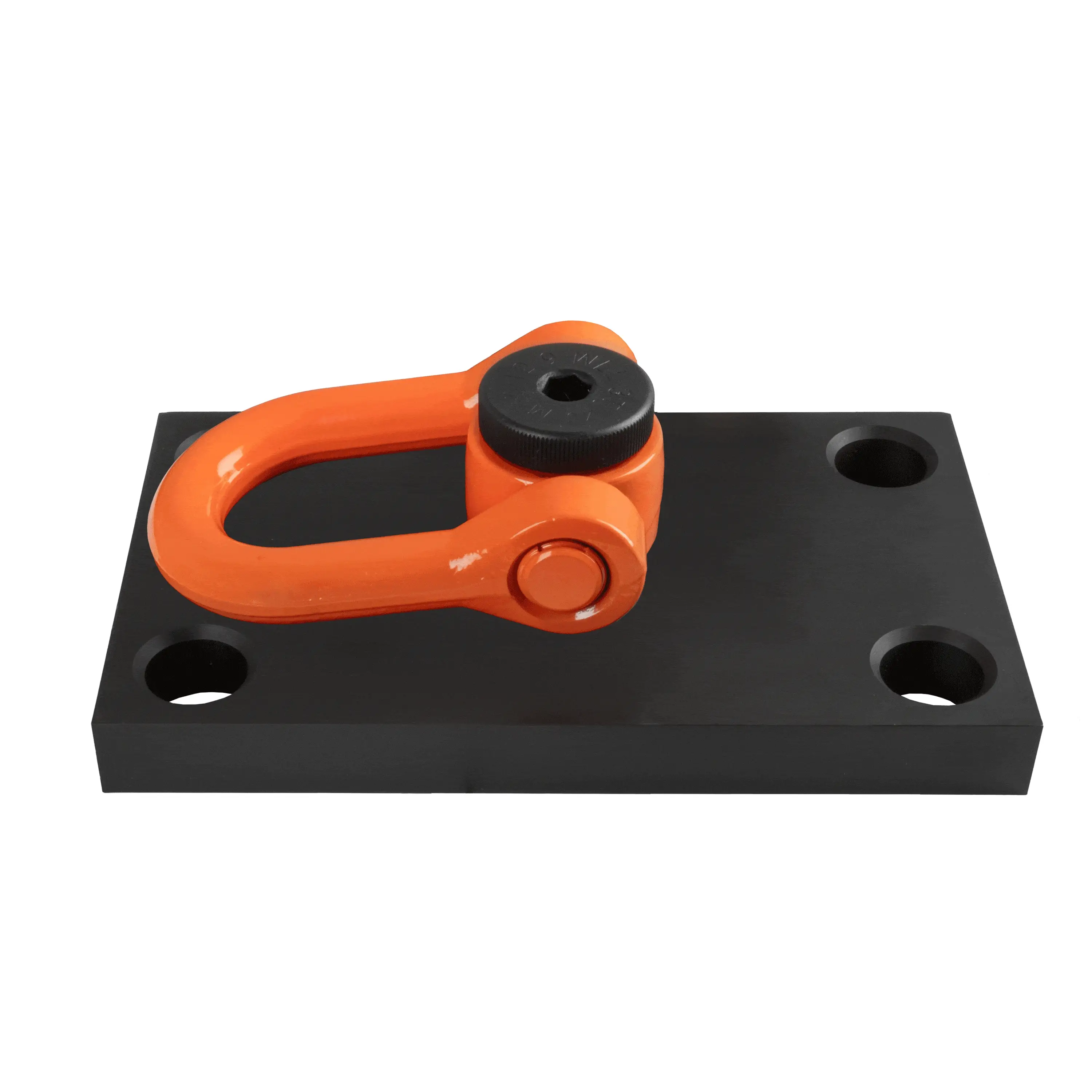

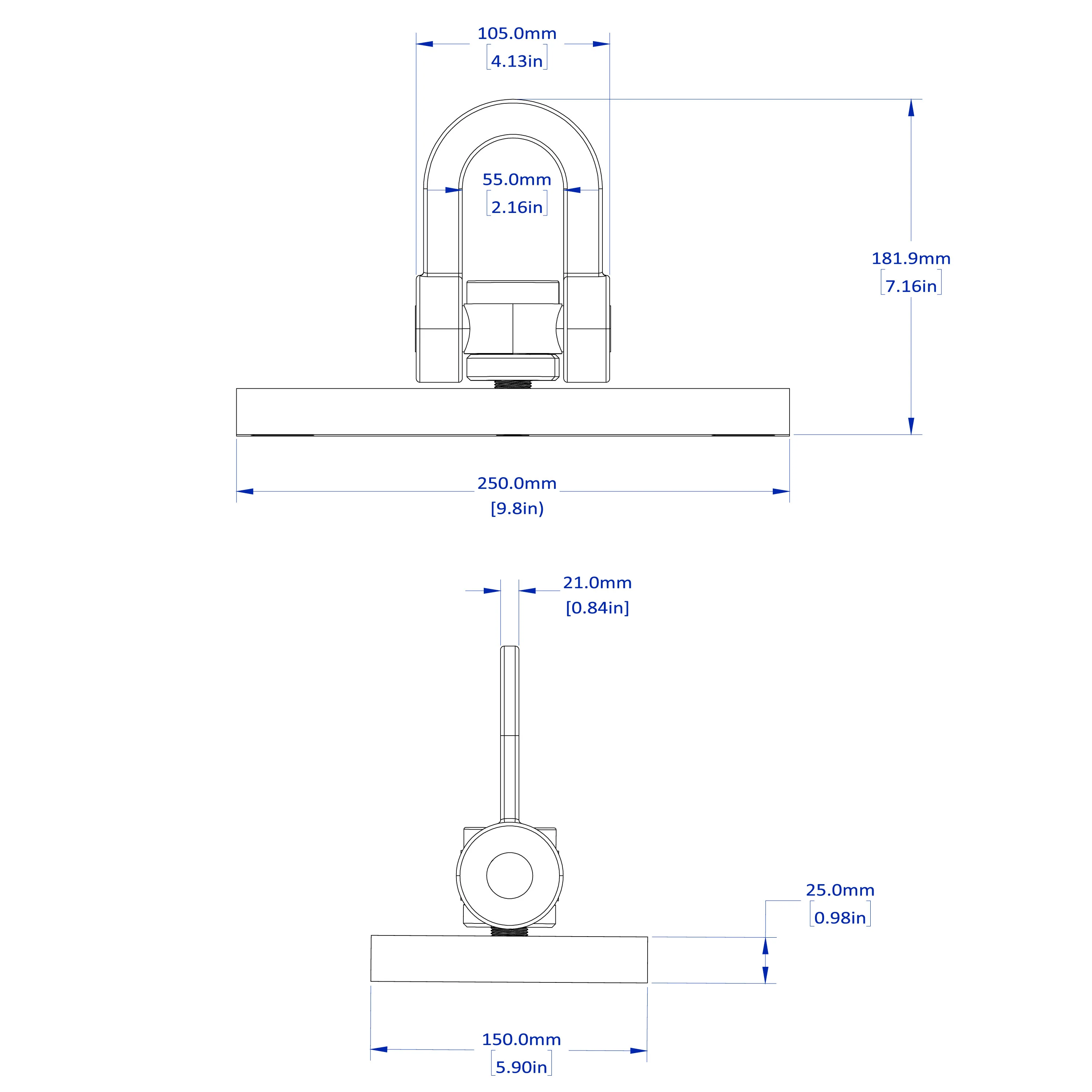

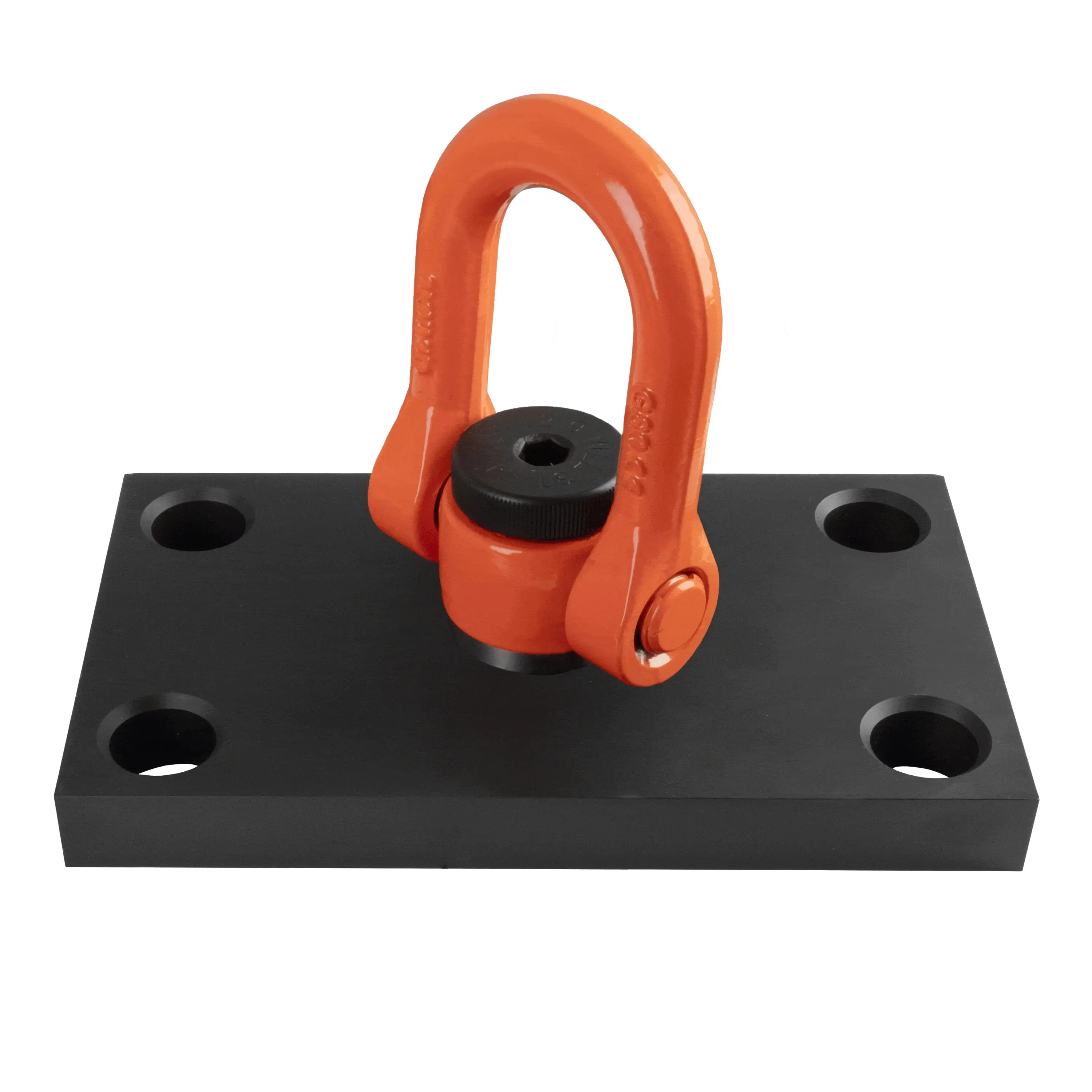

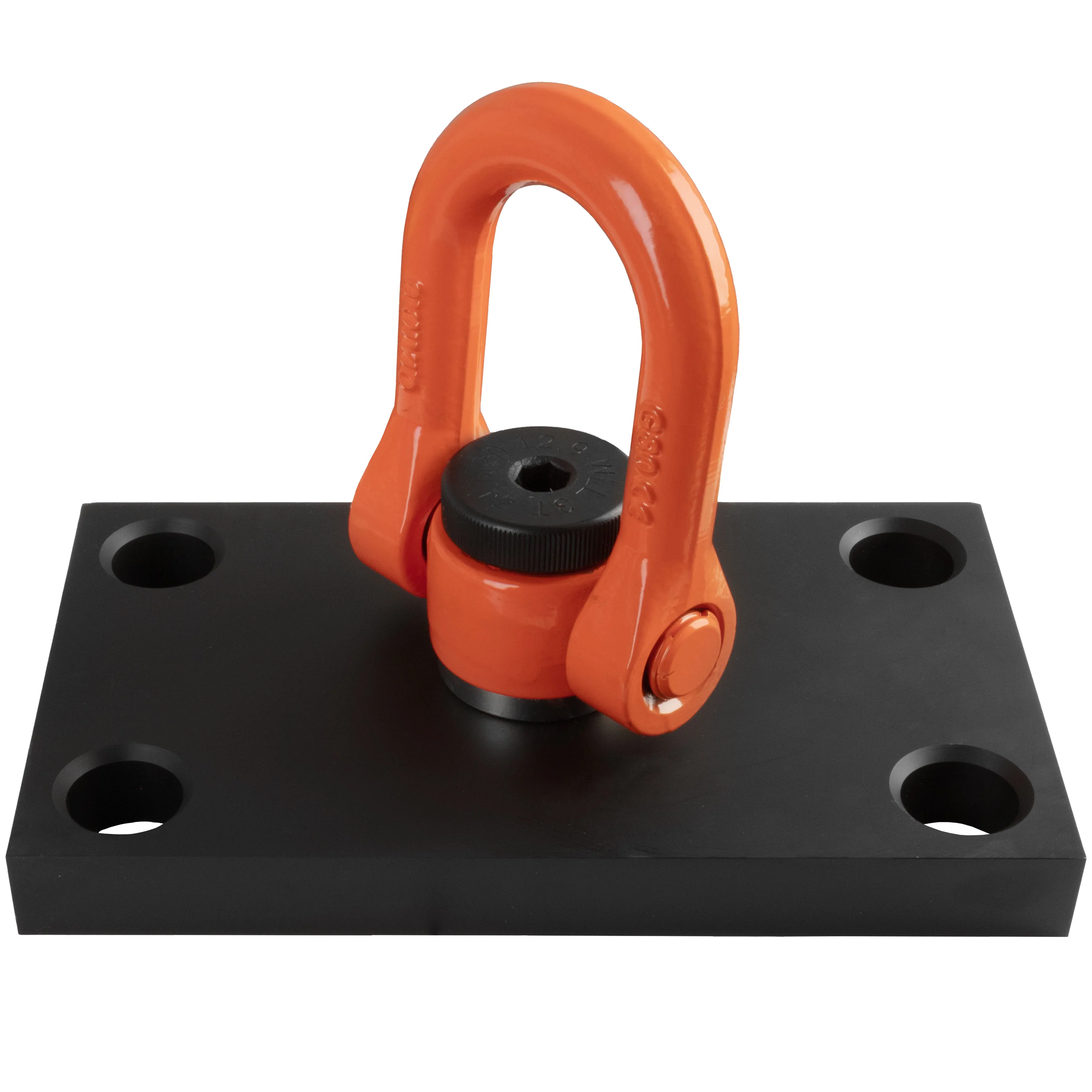

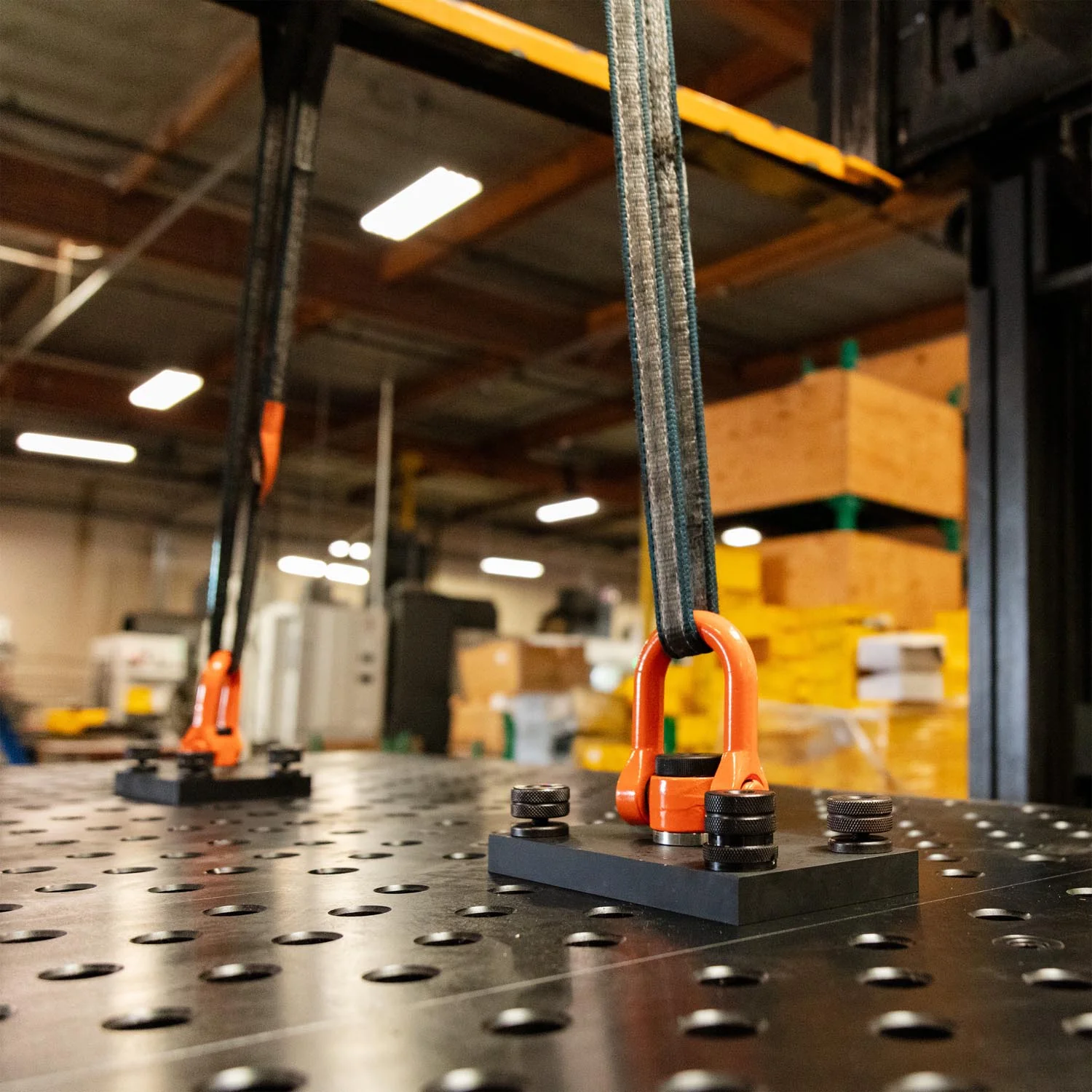

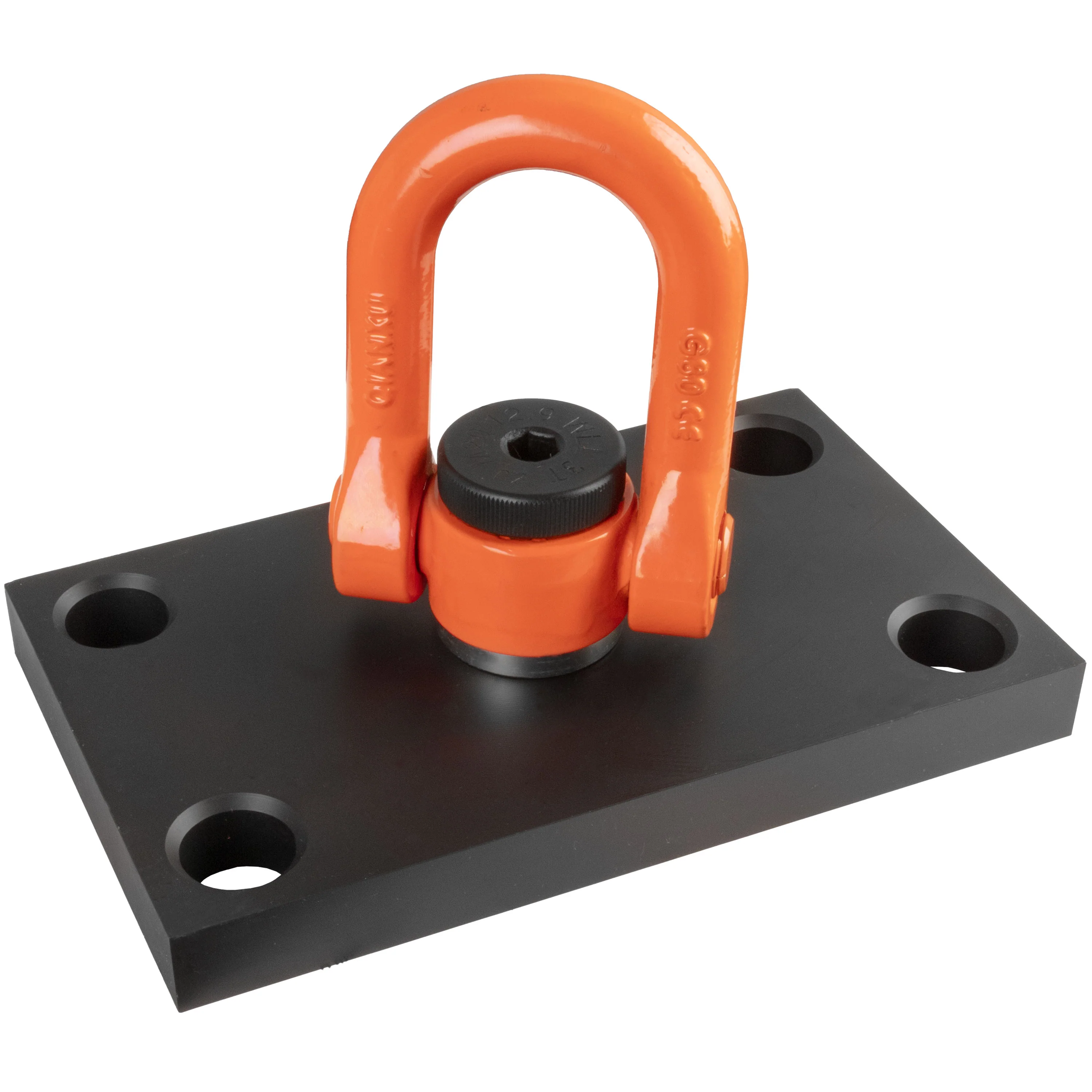

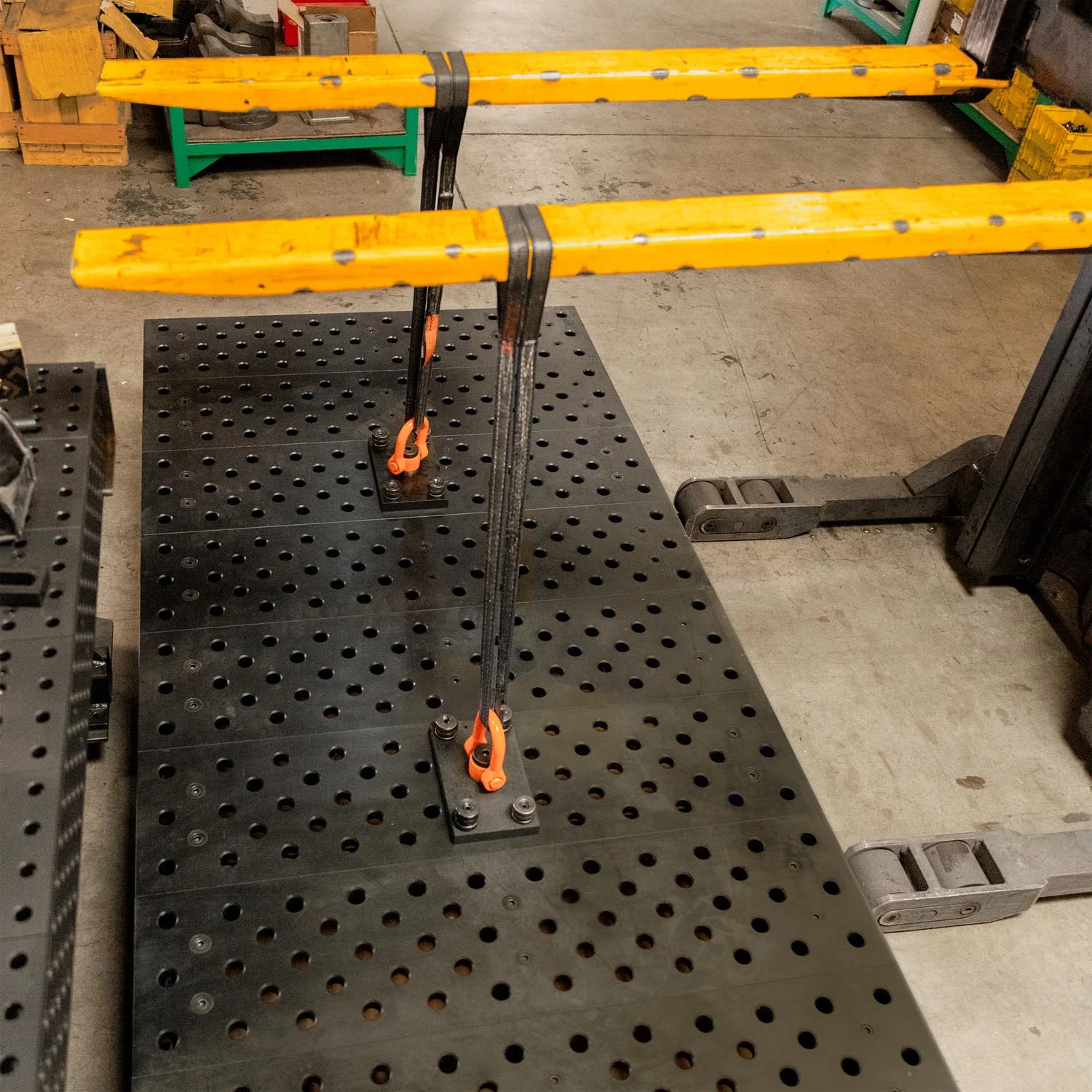

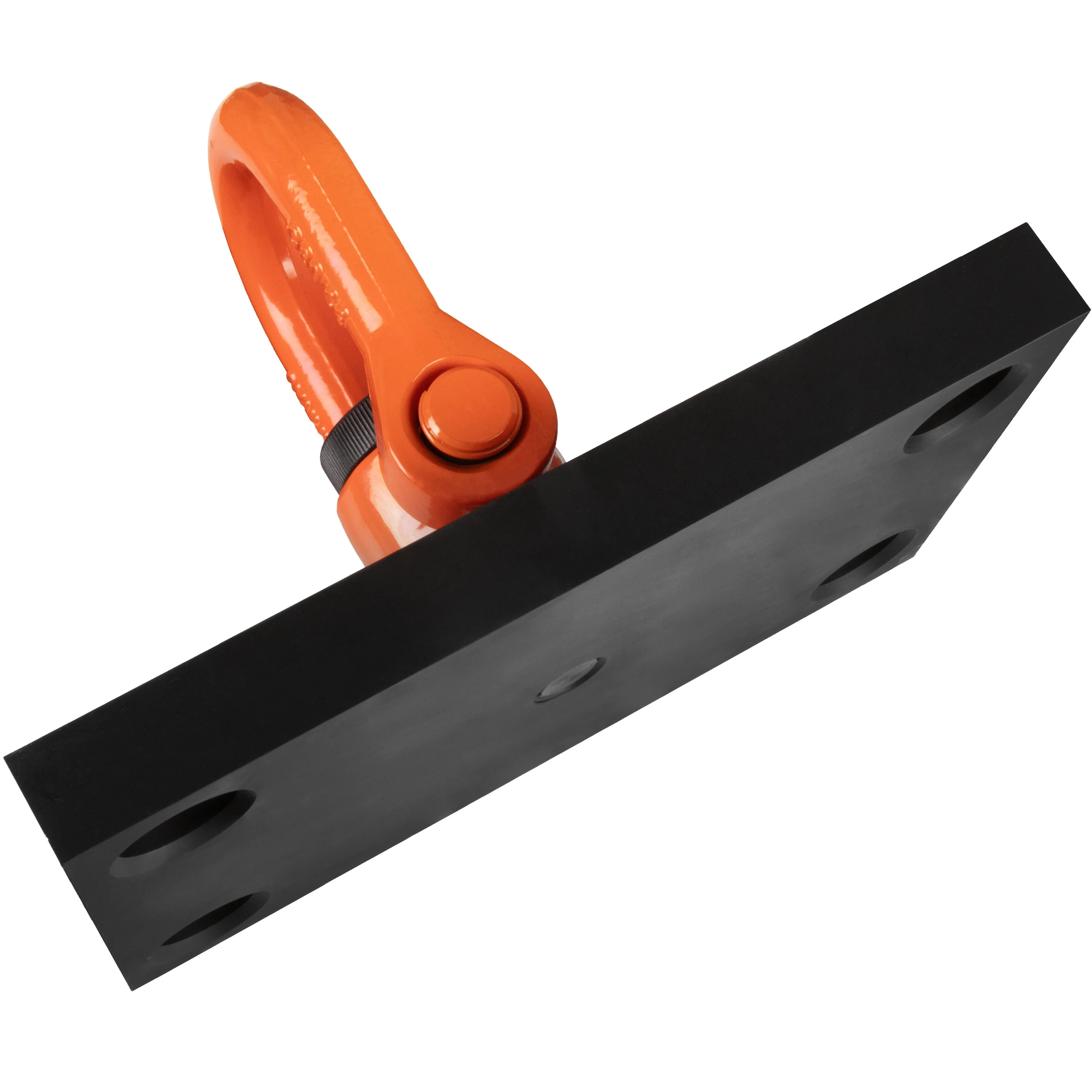

2. Lifting Bracket w/ Swivel Hoist Ring (T28-97159)

• Heavy-Duty Capacity: Rated up to 2,700 kg for more demanding lifting tasks.

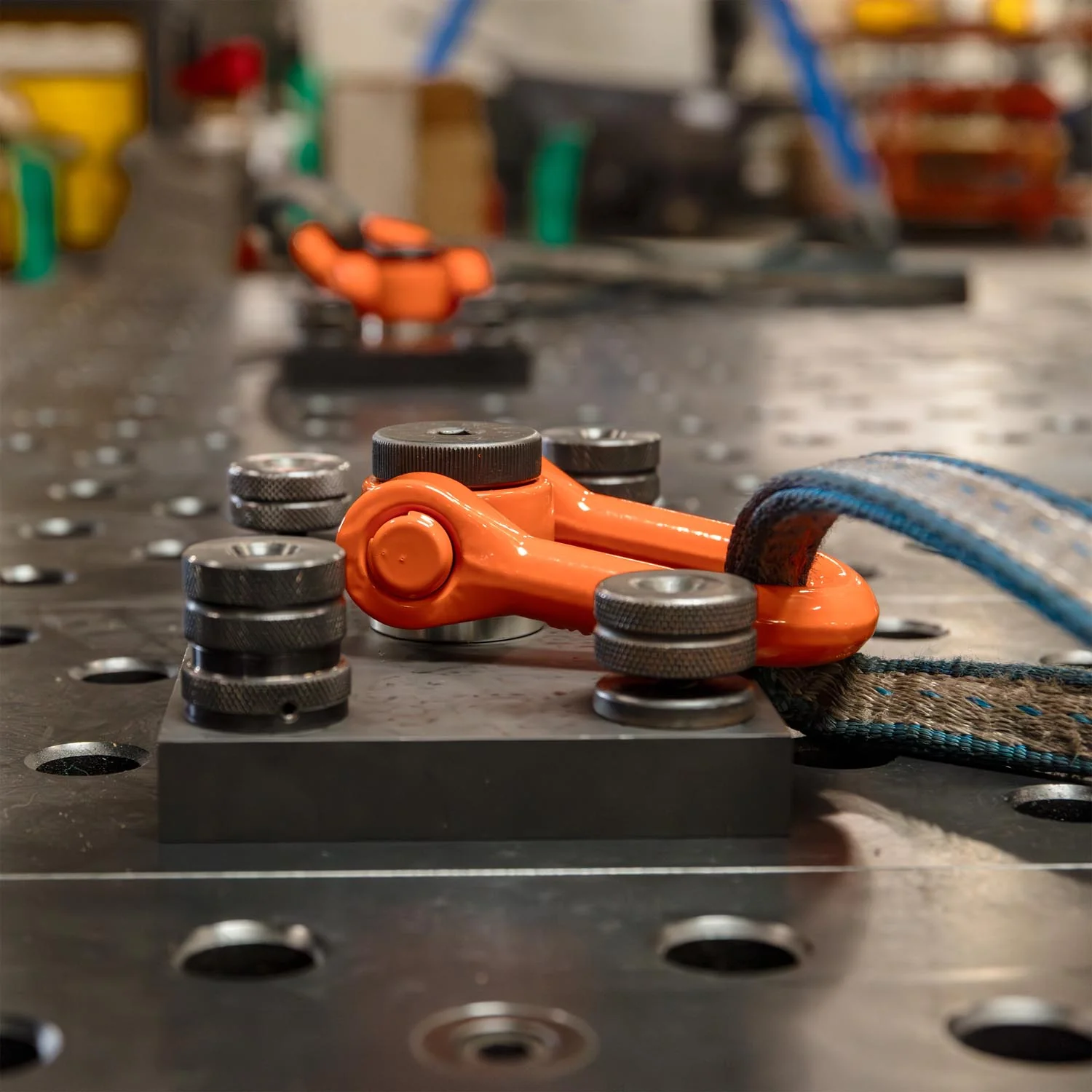

• Flexible Mounting: Compatible with ball lock bolts (T28-46450 or T28-47455) for quick and secure setup.
• Forged-Steel Construction: Built for maximum durability and long service life.
• Extended Reach: Extra clearance accommodates larger lifting hooks.
• Full Range of Motion:180° pivot and 360° swivel for safe lifting from virtually any angle.

Shared Features & Safety Guidelines

• Compatibility: Both models are fully compatible with 28 mm tables.
• Usage Guidelines:
  • Always ensure lifting components (Eye Nut or Hoist Ring) are fully threaded and seated flat on the bearing surface.
  • Do not lift objects more than 100 mm off the ground.
  • Never allow personnel underneath lifted or suspended loads.
  • Follow all applicable material handling safety standards.

Choose the Eye Nut model (T28-97150) for standard vertical lifts or the Swivel Hoist Ring model (T28-97159) for enhanced flexibility and higher-capacity lifting. Both ensure quick setup, safe operation, and long-lasting performance in industrial and workshop environments.
